Setra Lite room pressure monitoring for Australian projects
Setra Lite provides local differential-pressure indication for a single room, with a clear status light and an analogue pressure signal for a BMS. It is a practical option when staff need a straightforward room-pressure display and the wider building system handles trending and remote alarms.

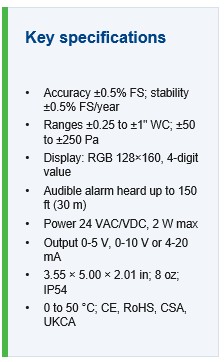

Technical features and configuration
- Electronic differential-pressure measurement with red/green status indication.
- 24 VAC or 24 VDC supply.
- Configurable 0–5 VDC, 0–10 VDC or 4–20 mA analogue output.
- Visual-only and optional audible-alarm versions; confirm the ordered model.
- Integrated reference-side pressure pickup and compact wall mounting.
Select the pressure range, mounting arrangement and alarm version against the project schedule. Check the current installation drawing before selecting an Australian wall box or adapting an existing opening.

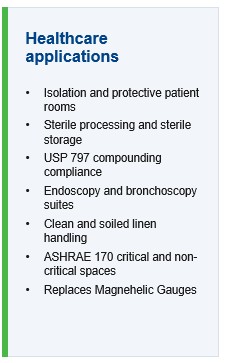

Applications: healthcare, laboratories and cleanrooms
Consider Lite for local pressure indication in healthcare support spaces, sterile storage, laboratories, cleanrooms and pharmacy projects where its specified functions match the room brief. For an isolation room or operating theatre, first establish the required local alarms, door-status handling, remote indication and BMS functions. A visual-only indicator must not be assumed to meet a requirement for audible and visual alarming.
BMS integration
Connect the configured analogue output to a compatible BMS input. Match the signal type, electrical wiring and full-scale pressure range at both ends, then check zero, polarity and scaling during commissioning. The BMS contractor should define remote alarm thresholds, delays, trends and the response to loss of power or an invalid signal.
The documented interface is analogue. Do not specify direct BACnet or Modbus communication for Lite on the basis of a generic “BMS compatible” description.
Frequently asked questions
Does every Setra Lite have an audible alarm?
No. Setra offers visual-only and audible-alarm versions. Include the audible option explicitly where required.
Can Lite replace an existing mechanical pressure indicator?
It may be a suitable electronic alternative after checking the pressure range, power supply, tubing, wall opening and required alarms. It is not an automatic like-for-like replacement.
Does Lite control the room pressure?
Lite indicates pressure and provides a measurement signal. The mechanical system and its controls establish the pressure relationship.
When should I choose SRCM or FLEX instead?
Review SRCM or FLEX when the project needs a touchscreen, additional environmental readings, multiple rooms or a networked monitoring arrangement.
Setra room monitor information
Explore Setra Lite for local pressure indication, Setra SRCM for two-room condition monitoring and Setra FLEX for multi-parameter monitoring and optional control. Read our Critical Room Monitoring in Australia guide for application, alarm and commissioning considerations.
Australian selection and project support
Controls Direct assists Australian consultants, mechanical contractors, BMS integrators and facility teams with product selection. Send your room schedule, required pressure range in Pa, alarm requirements, BMS specification, sensor list, quantities and required delivery date. For replacements, include the existing model, wiring details and wall opening dimensions. Request confirmation of the exact configuration, accessories and availability before ordering.
Manufacturer documentation
Setra Lite installation and operating guide, Rev. F · Setra Lite audible-alarm model information. Technical content checked 29 September 2026; confirm the supplied model and current documentation for procurement.
