This product is discontinued.

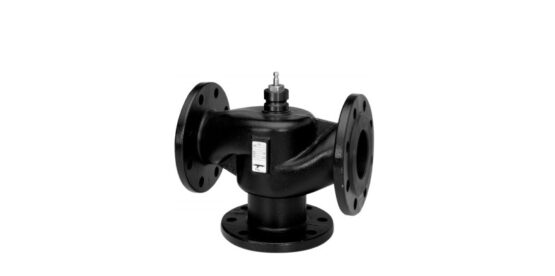

Siemens VXF40.65-49
3-port seat valve, flanged, PN16, DN65, kvs 49
Compatible actuators
PN class PN 16
SAX.. Δpmax 175 kPa
SKD.. Δpmax 275 kPa
SKB.. Δpmax 300 kPa
SAX61.03/MO
Electromotoric actuators 800 N for valve with 20 mm stroke, Modbus RTU
SAX31.00
Electromotoric actuator, 800 N, 20 mm, AC 230 V, 3P
SAX31.03
Electromotoric actuator, 800 N, 20 mm, AC 230 V, 3P, 30 s
SAX61.03
Electromotoric actuator, 800 N, 20 mm, AC/DC 24 V, DC 0…10 V / DC 4…20 mA, 30 s
SAX81.03
Electromotoric actuator, 800 N, 20 mm, AC/DC 24 V, 3P, 30 s
SAX81.00
Electromotoric actuator, 800 N, 20 mm, AC/DC 24 V, 3P
SAX61.03U
Electromotoric actuator, 800 N, 20 mm, AC/DC 24 V, DC 0…10 V / DC 4…20 mA, 30 s, UL
SKD32.51
Electrohydraulic actuator, 1000 N, 20 mm, AC 230 V, 3P, spring return
SKD82.51
Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, 3P, spring return
SKD32.21
Electrohydraulic actuator, 1000 N, 20 mm, AC 230 V, 3P, spring return
SKD32.50
Electrohydraulic actuator, 1000 N, 20 mm, AC 230 V, 3P
SKD82.50
Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, 3P
SKD62U
Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0…10 V/4…20 mA, spring return, UL
SKD60
Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0…10/V 4…20 mA
SKD62UA
Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0…10 V/4…20 mA, spring return, UL
SKD62
Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0…10 V/4…20 mA, spring return
