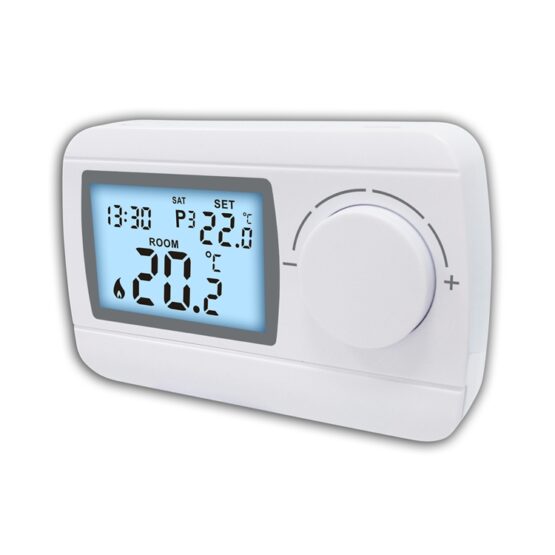

Floor Heating Room Thermostat, LCD, Heat, DC 3V Battery, 7-Day Time Switch, On/Off Output
TECHNICAL DATA
— switchable voltage: 24 V AC / DC,…250 V AC; 50 Hz
— switch able current: 8A (2A inductive load)
— temperature measurement range: 3 to 45°C (in 0. 1°C increments)
— adjustable temperature range: 5 to 40°C (in 0.5°C increments)
— temperature measurement accuracy: ±0.5°C
— selectable switching sensitivity: ±0.2°C (for radiat or-based heating systems)
+0.1/-0.2°C(for under floor heating)
— storage temperature: -10°Cto+60°C
— power supply voltage: 2×1.5V AA alkaline batteries (LR6 type)
—power consumption: 1.3mW
— battery lifetime: approx.1year
— dimensions: 119 x 80 x 31mm
— weight: 147 g
— temperature sensor type: NTC 10Kohm ±1% at 25°C
