NSA-FHN7001-0

Network room sensor

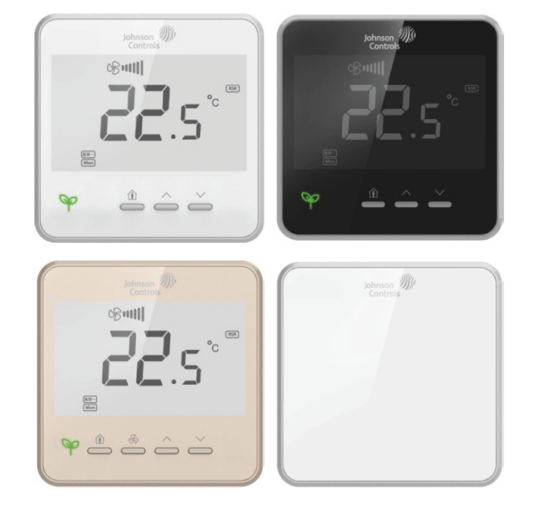

Flush-Mounted NSA7000 Series Network Sensor

The flush-mounted NSA7000 series network sensor with LCD is an electronic zone sensor designed to function directly with Johnson Controls® BACnet® MS/TP digital controllers in heating, ventilating and air conditioning (HVAC) systems. Models in this series monitor the temperature set point, zone temperature and humidity, and transmit this data to a field controller on the sensor actuator (SA) bus.
NSA-FHR71X3-0 can toggle between temperature and RH on the dis-play, and has the capability to set the desired default display to either temperature or RH. A fan mode push button is included in NSA-FTD70X3-0 to set the desired fan speed (OFFLOW- MED-HIGH-AUTO). Besides NSA-FHN70X1-0, all other models have occupancy override button which allows user to signal the controller that the zone is occupied
to override the scheduled mode. For communication wiring flexibility, all models equipped with both a modular jack and screw terminals, connecting the NSA7000 network sensor to controllers.
