A19BAF-1C

Original price was: $450.00.Current price is: $437.00.

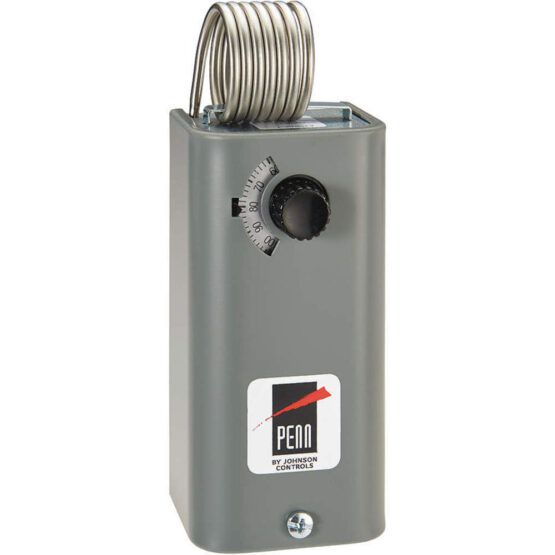

The Johnson Controls A18BAF-1C Penn thermostat is equipped with an air coil sensing element, making it an ideal choice for controlling the temperature in various environments such as buildings, central heating units, and air conditioners. This versatile thermal unit effectively regulates the heat or coolness in a specific area to achieve a desired temperature. Its advanced sensing capabilities make it particularly useful in maintaining optimal temperature levels in settings such as offices, hospitals, and restaurants.

Product Specifications:

Item Line Volt Mechanical Tstat
Capillary Length 2-1/4″
Color Gray
Contact Rating Resistive @ 120V 10A
Contact Rating Resistive @ 240V 10A
Contact Rating Resistive @ 277V 10A
Control Range 30 Degrees to 110 Degrees F
Depth 1-13/16″
Differential 1.5 Degrees F
Enclosure Type Galvanized/Steel
Full Load Amps @ 120V 15A
Full Load Amps @ 240VAC 3A
Height 4 13/32″
Inductive Amps @ 120V 6A
Inductive Amps @ 240V 3A
Locked Rotor Amps @ 120V 36A
Locked Rotor Amps @ 240V 18A
Mounting Type Flat Surface
Number of Switches 1
Pilot Duty Contacts (VA) 125VA
Remote Sensing Capability No
Resistive Amps @ 208VAC 10A
Sensing Bulb Length 1-3/8″
Sensor Type Coil
Switch Action Open/Close on Rise
Switch Type SPDT
Voltage 24 to 277 VAC
Width 2.156″

Shipping Info:

Ship weight (kg) 0.39
Ship height (cm) 6.35
Ship length (cm) 15.24
Ship width (cm) 6.35
Country of Origin MX
Weight 0.39 kg
Dimensions 15.24 × 6.35 × 6.35 cm
